Example: Regrid from Native FV3 Vertical Grid to Pressure Levels#
See documentation about the FV3 native grid here, in Section 5.1.
[2]:
import xarray as xr
import matplotlib.pyplot as plt
import numpy as np
import fsspec
from ufs2arco import Layers2Pressure
Open GRIB2 file from Replay#
The Replay dataset contains Grib2 files with fields interpolated to pressure levels via the NCEP Unified Post Processor. We will use this as a verification, grabbing a random date from the 1 degree dataset.
[3]:
url = "filecache::s3://noaa-ufs-gefsv13replay-pds/1deg/1996/01/1996010106/GFSPRS.GrbF00"
file = fsspec.open_local(url, s3={"anon": True}, filecache={"cache_storage": "./gribcache"})
[4]:
gds = xr.open_dataset(
file,
engine="cfgrib",
filter_by_keys={'typeOfLevel': 'isobaricInhPa'}
)
gds = gds.rename({"isobaricInhPa": "pfull"})
skipping variable: paramId==228164 shortName='tcc'
Traceback (most recent call last):
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 721, in build_dataset_components
dict_merge(variables, coord_vars)
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 639, in dict_merge
raise DatasetBuildError(
cfgrib.dataset.DatasetBuildError: key present and new value is different: key='isobaricInhPa' value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50., 40., 30., 20., 15., 10., 7.,
5., 3., 2., 1.])) new_value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50.]))
skipping variable: paramId==260018 shortName='clwmr'
Traceback (most recent call last):
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 721, in build_dataset_components
dict_merge(variables, coord_vars)
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 639, in dict_merge
raise DatasetBuildError(
cfgrib.dataset.DatasetBuildError: key present and new value is different: key='isobaricInhPa' value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50., 40., 30., 20., 15., 10., 7.,
5., 3., 2., 1.])) new_value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50.]))
skipping variable: paramId==260019 shortName='icmr'
Traceback (most recent call last):
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 721, in build_dataset_components
dict_merge(variables, coord_vars)
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 639, in dict_merge
raise DatasetBuildError(
cfgrib.dataset.DatasetBuildError: key present and new value is different: key='isobaricInhPa' value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50., 40., 30., 20., 15., 10., 7.,
5., 3., 2., 1.])) new_value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50.]))
skipping variable: paramId==260020 shortName='rwmr'
Traceback (most recent call last):
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 721, in build_dataset_components
dict_merge(variables, coord_vars)
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 639, in dict_merge
raise DatasetBuildError(
cfgrib.dataset.DatasetBuildError: key present and new value is different: key='isobaricInhPa' value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50., 40., 30., 20., 15., 10., 7.,
5., 3., 2., 1.])) new_value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50.]))
skipping variable: paramId==260021 shortName='snmr'
Traceback (most recent call last):
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 721, in build_dataset_components
dict_merge(variables, coord_vars)
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 639, in dict_merge
raise DatasetBuildError(
cfgrib.dataset.DatasetBuildError: key present and new value is different: key='isobaricInhPa' value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50., 40., 30., 20., 15., 10., 7.,
5., 3., 2., 1.])) new_value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50.]))
skipping variable: paramId==260028 shortName='grle'
Traceback (most recent call last):
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 721, in build_dataset_components
dict_merge(variables, coord_vars)
File "/Users/tsmith/miniconda3/envs/ufs2arco/lib/python3.11/site-packages/cfgrib/dataset.py", line 639, in dict_merge
raise DatasetBuildError(
cfgrib.dataset.DatasetBuildError: key present and new value is different: key='isobaricInhPa' value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50., 40., 30., 20., 15., 10., 7.,
5., 3., 2., 1.])) new_value=Variable(dimensions=('isobaricInhPa',), data=array([1000., 975., 950., 925., 900., 875., 850., 825., 800.,
775., 750., 725., 700., 675., 650., 625., 600., 575.,
550., 525., 500., 475., 450., 425., 400., 375., 350.,
325., 300., 275., 250., 225., 200., 175., 150., 125.,
100., 70., 50.]))
Pull same data from our zarr store on GCS#
Note that there will be some expected differences since the order of operations is different. The fields in the Grib2 files are first interpolated vertically to pressure levels, then horizontally from cubed sphere to the Gaussian grid. Whereas our Replay dataset on GCS is already on the Gaussian grid, and we will interpolate this to pressure levels.
[5]:
ds = xr.open_zarr(
"gs://noaa-ufs-gefsv13replay/ufs-hr1/1.00-degree/03h-freq/zarr/fv3.zarr",
storage_options={"token": "anon"},
)
ds = ds[["tmp", "pressfc", "delz", "dpres", "spfh", "ugrd", "vgrd", "dzdt"]]
ds = ds.sel(time=gds.time.values).load()
ds = ds.rename({"grid_xt": "longitude", "grid_yt": "latitude"})
Create Layers2Pressure object#
This handles all the calculations. See all capabilities here, and an example of computing geopotential here.
[6]:
lp = Layers2Pressure()
Compute layer mean pressure, and get the interpolation coefficients to interpolate to 850 hPa.
Note that it’s convenient to pre-calculate these coefficients, in order to re-use these for interpolating multiple variables.
[7]:
prsl = lp.calc_layer_mean_pressure(ds["pressfc"], ds["tmp"], ds["spfh"], ds["delz"])
[8]:
pstar = 850 # hPa
pstar *= 100 # Pa
cds = lp.get_interp_coefficients(pstar, prsl)
[9]:
pressure_fields = {}
for key in ["tmp", "spfh", "ugrd", "vgrd", "dzdt"]:
pressure_fields[key] = lp.interp2pressure(
ds[key],
pstar=pstar,
prsl=prsl,
cds=cds,
)
[10]:
replay2grib = {
"tmp": "t",
"spfh": "q",
"ugrd": "u",
"vgrd": "v",
"dzdt": "wz",
}
[11]:

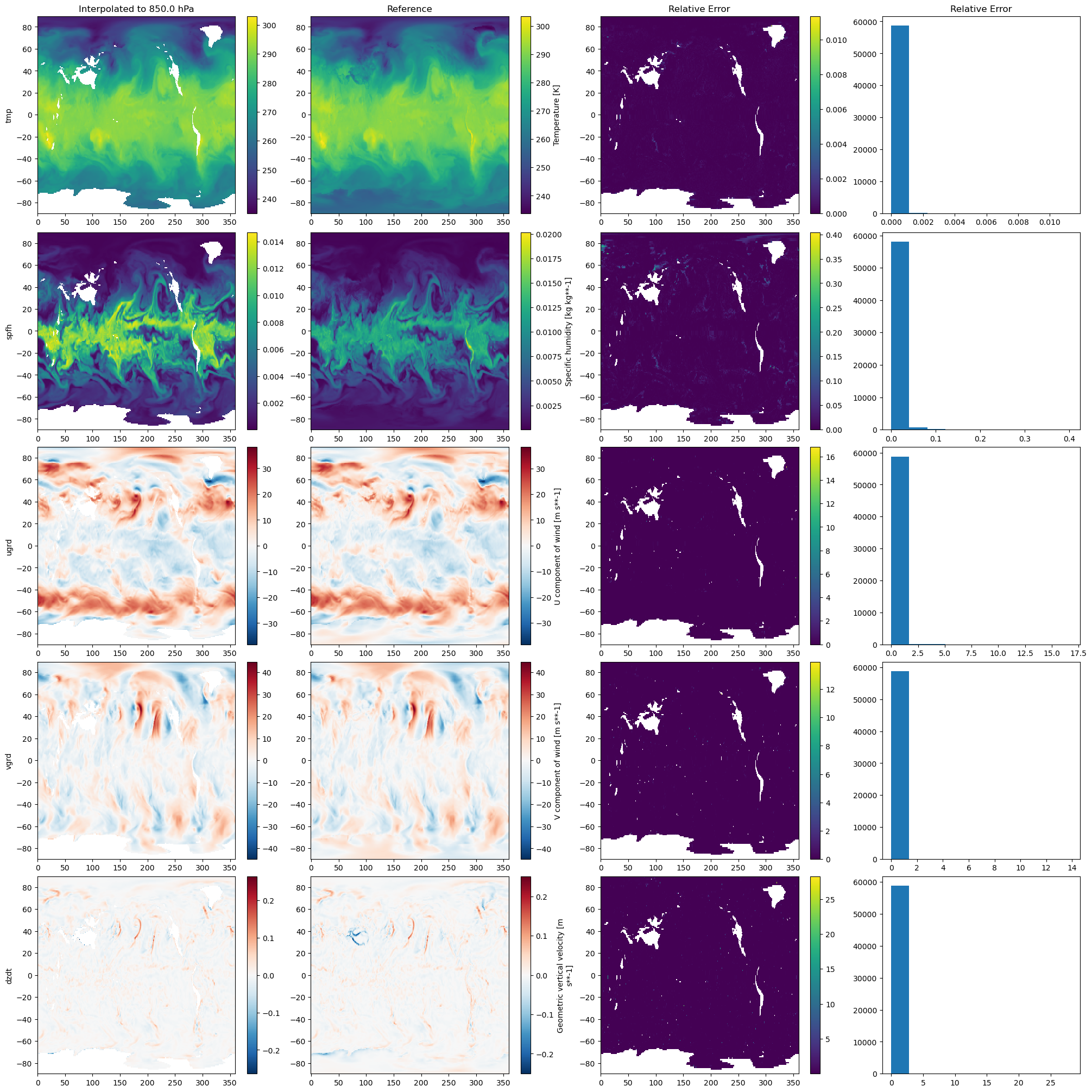

nrows = len(pressure_fields)
fig, axs = plt.subplots(nrows, 4, figsize=(20, 4*nrows), constrained_layout=True)
for (key, xda), axr in zip(pressure_fields.items(), axs):
gxda = gds[replay2grib[key]].sel(pfull=pstar/100)
diff = xda - gxda
denom = np.abs(gxda)
denom = denom.where(denom > 1e-6, np.nan)
reldiff = np.abs(diff) / denom
xda.plot(ax=axr[0])
gxda.plot(ax=axr[1])
reldiff.plot(ax=axr[2])
reldiff.plot.hist(ax=axr[3])
[ax.set(xlabel="", ylabel="", title="") for ax in axr]
axr[0].set(ylabel=key)
axs[0,0].set(title=f"Interpolated to {pstar/100} hPa")
axs[0,1].set(title="Reference")
axs[0,2].set(title="Relative Error")
axs[0,3].set(title="Relative Error");
Note that we do not extrapolate the field below the surface. Instead these points are ignored and replaced with NaNs.
Small differences between the reference and interpolated result exist because here we are vertically interpolating data that has been regridded horizontally from the Cubed Sphere topology to a Gaussian grid, whereas the reference consists of data that is interpolated vertically first, then horizontally.
[ ]:
[ ]:
